Construction Drawings


View fullsize Elevations

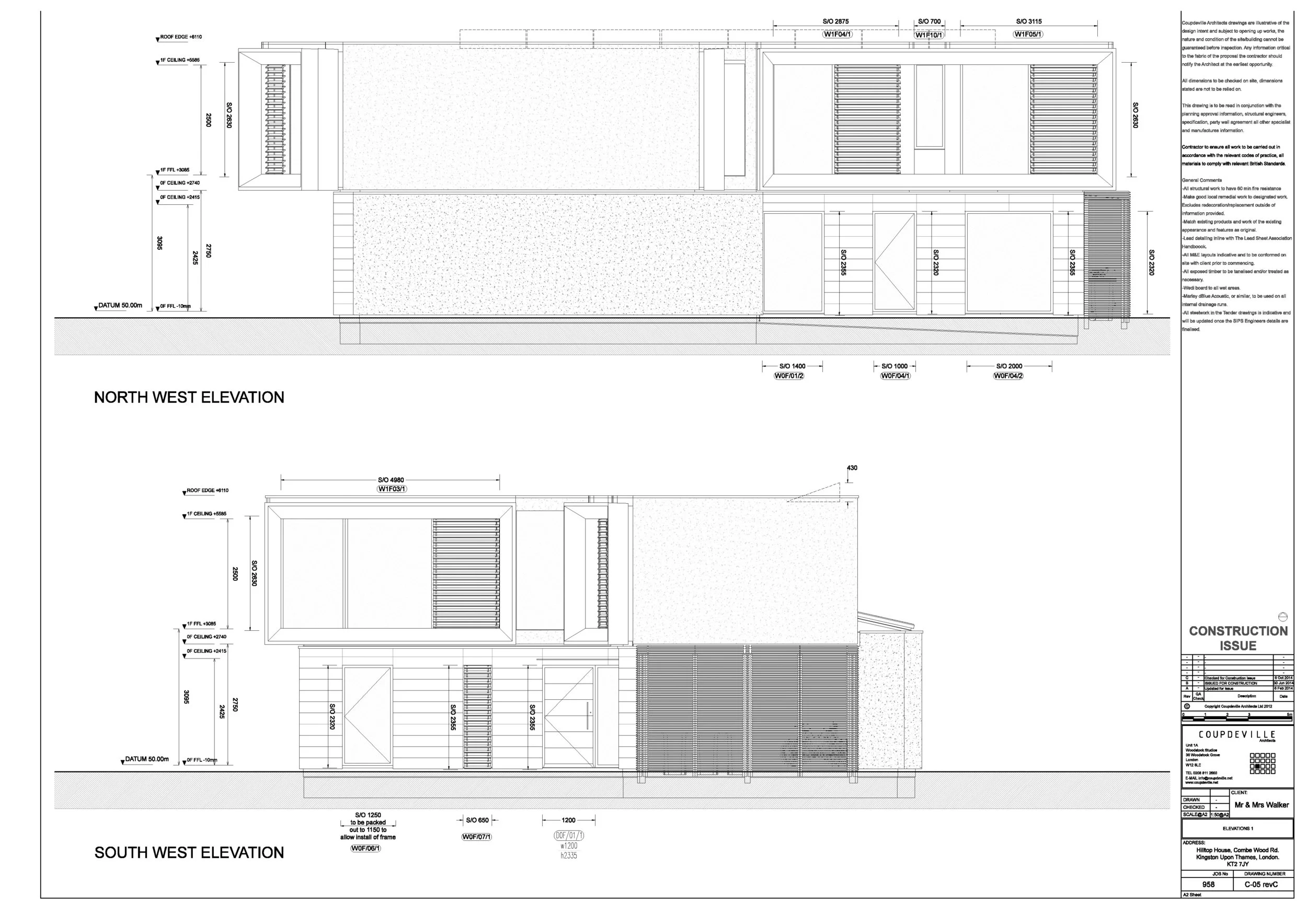

Elevations
View fullsize Ground Floor Plan

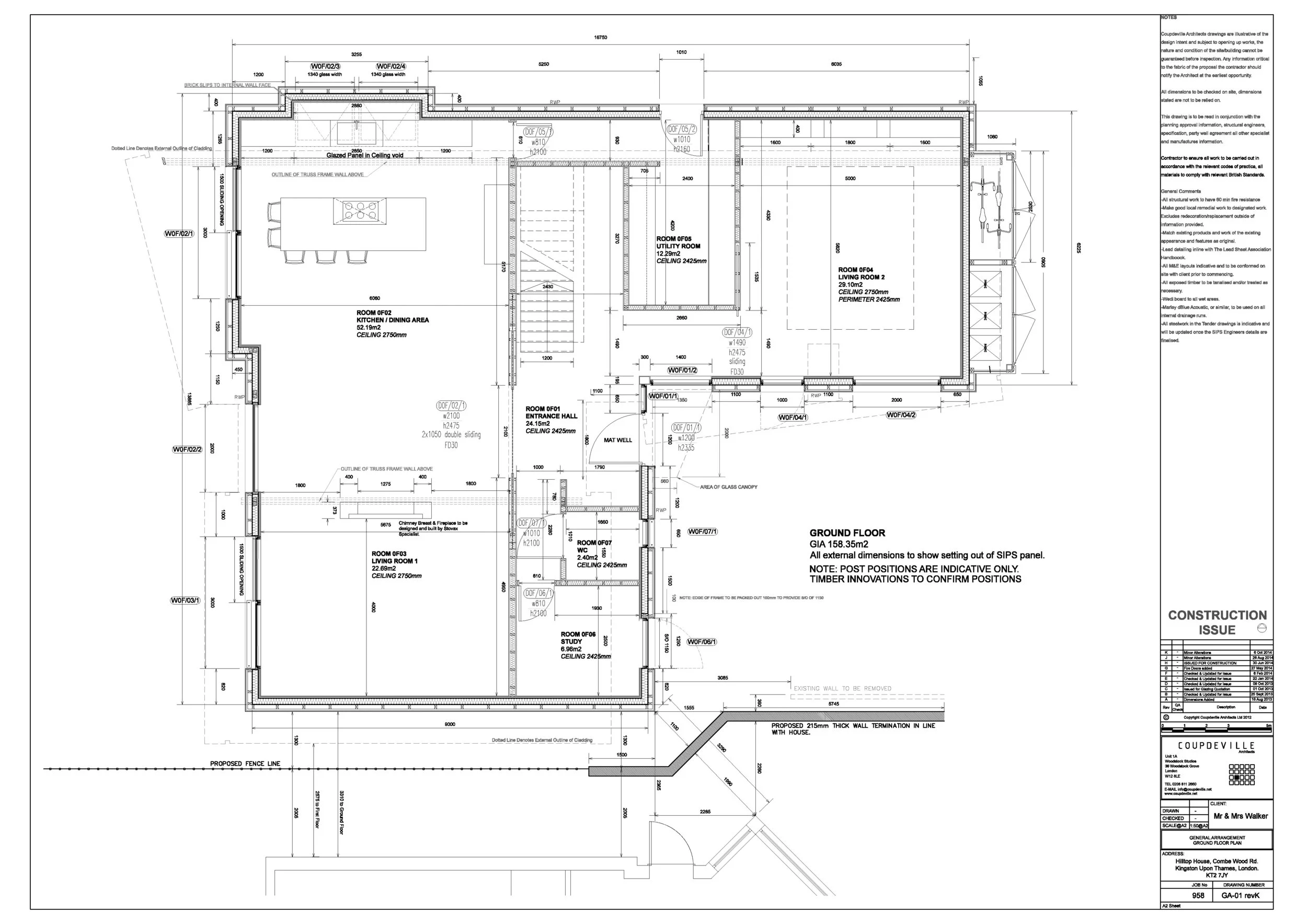

Ground Floor Plan
View fullsize First Floor Plan

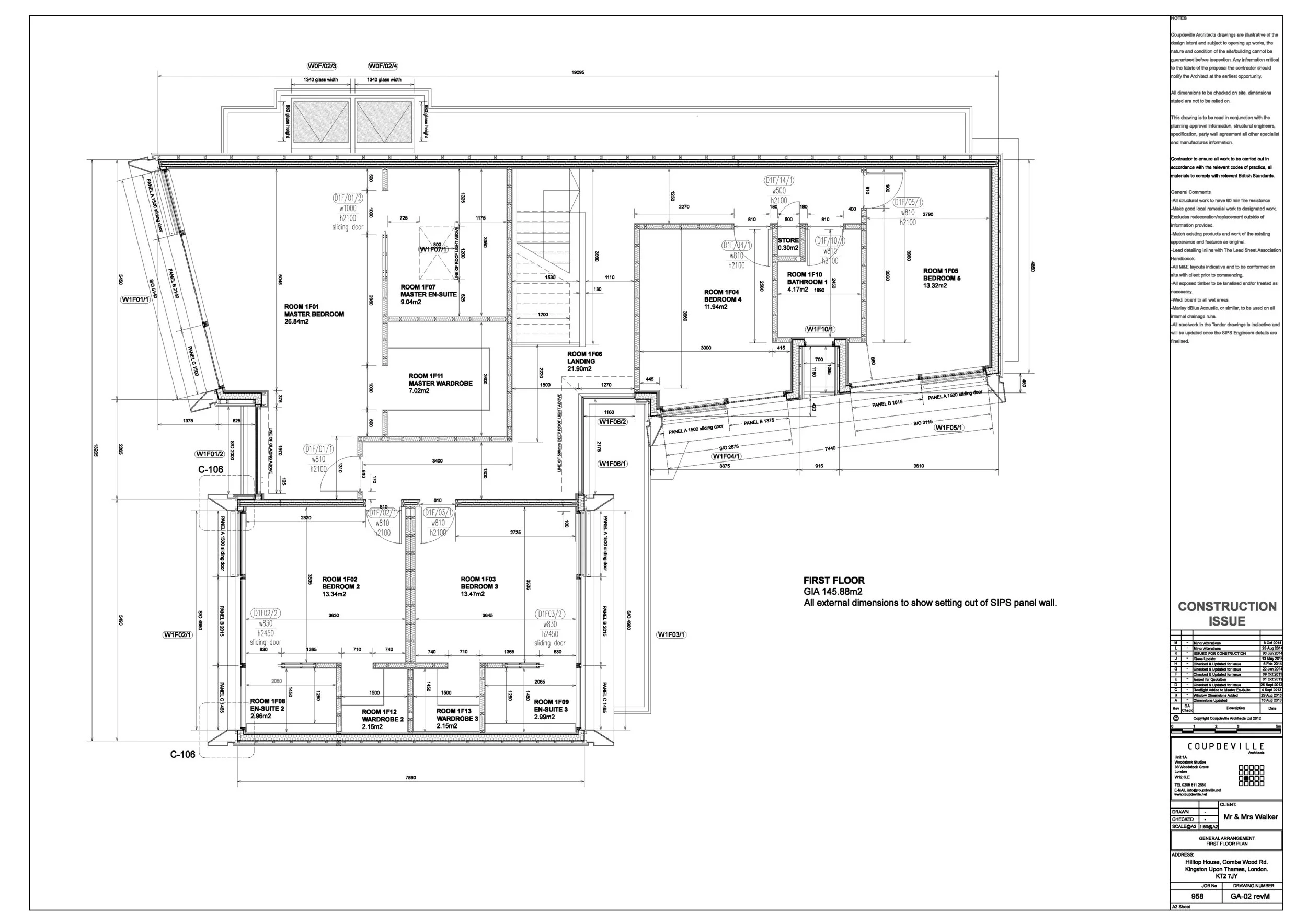

First Floor Plan
View fullsize Roof Plan

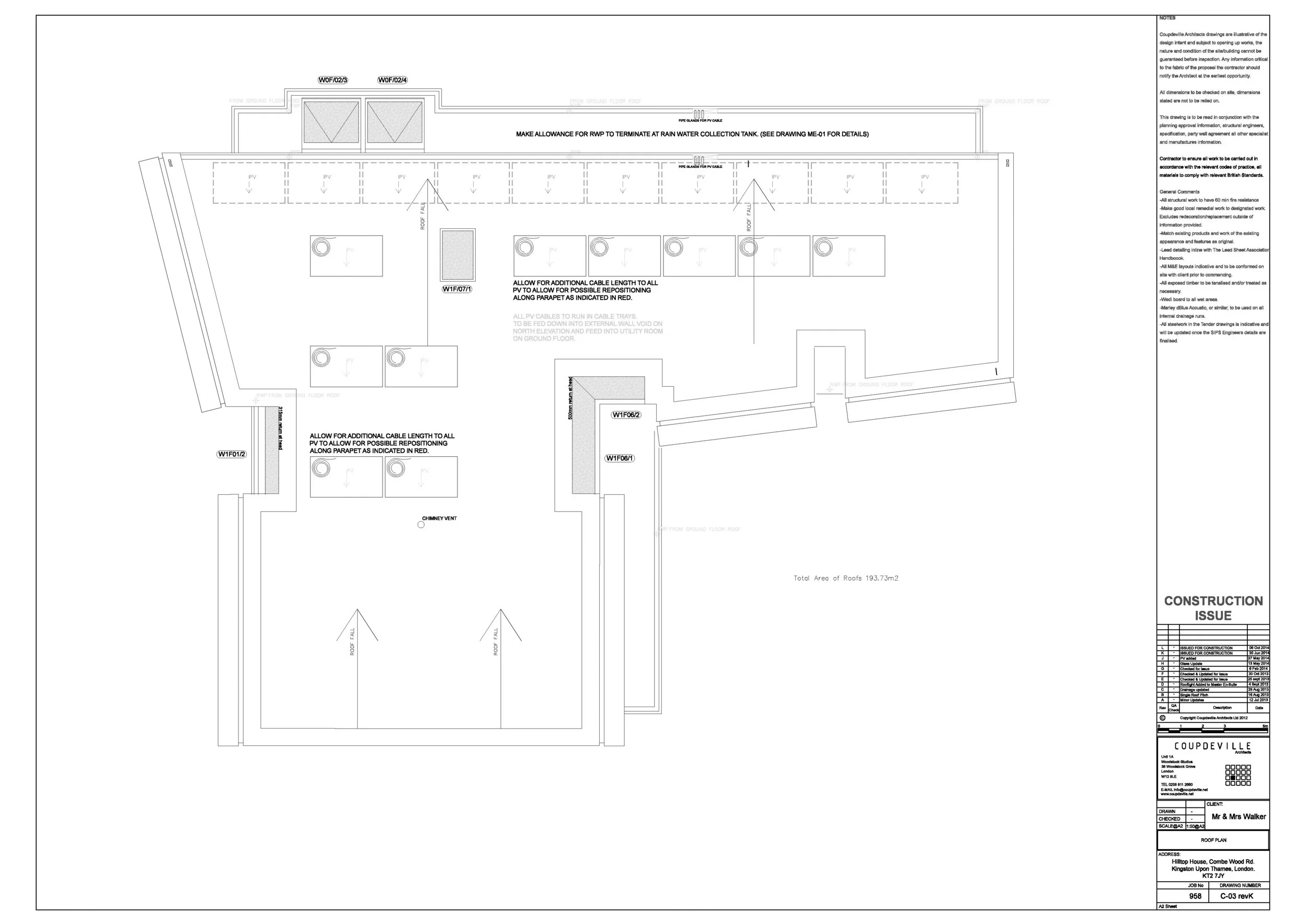

Roof Plan
View fullsize Sections

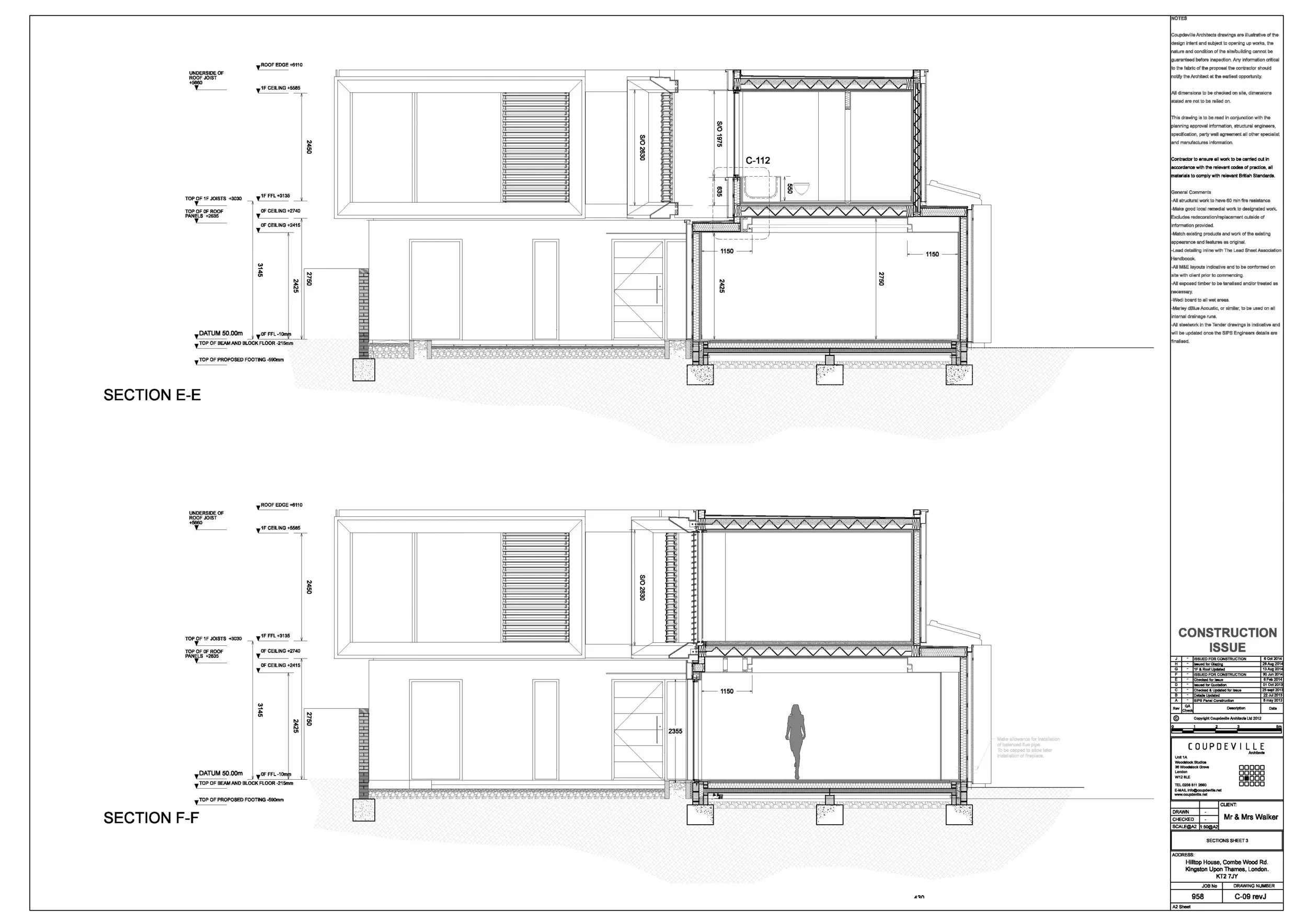

Sections
View fullsize Glazing Return Detail

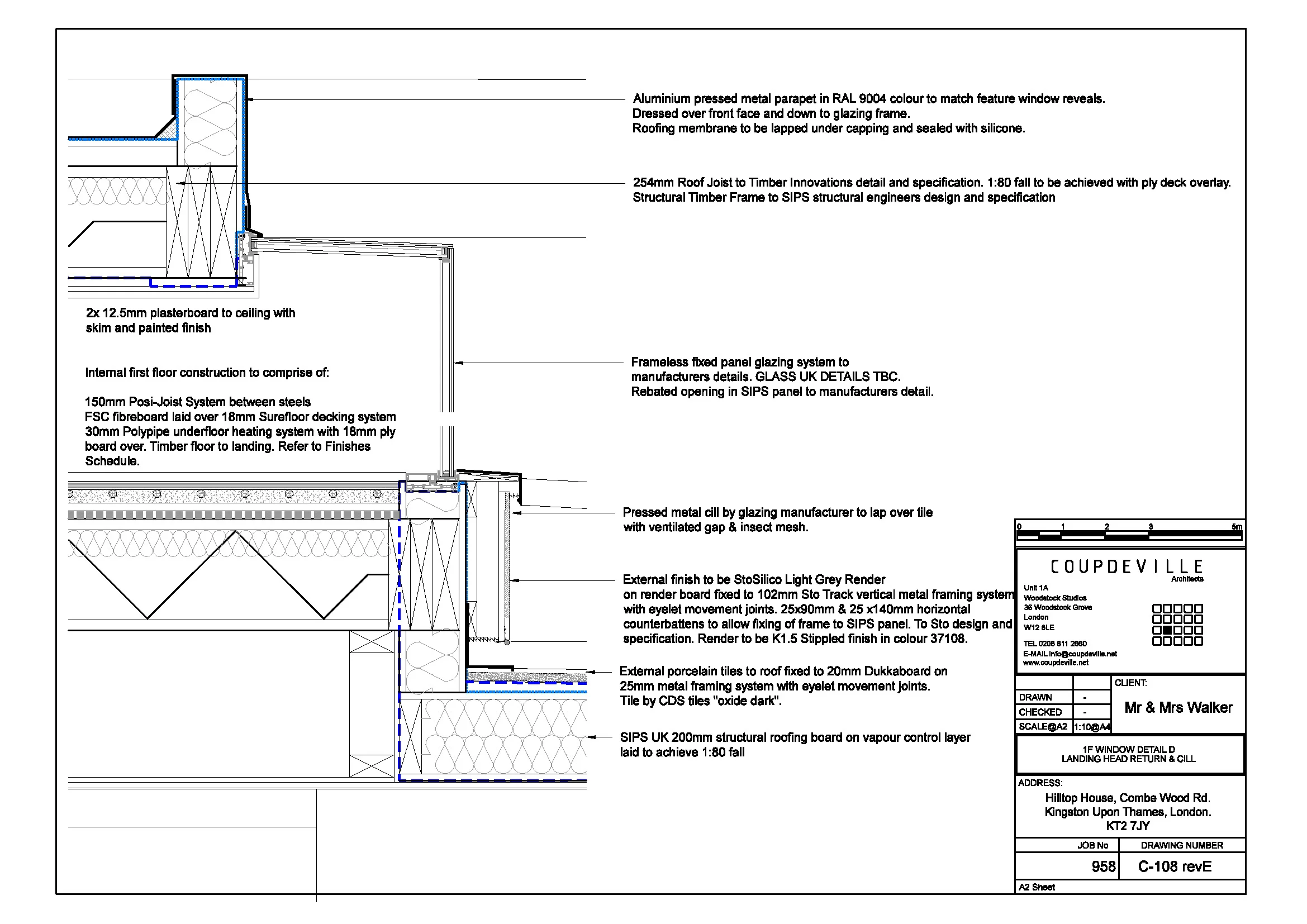

Glazing Return Detail
View fullsize Window Reveal Detail

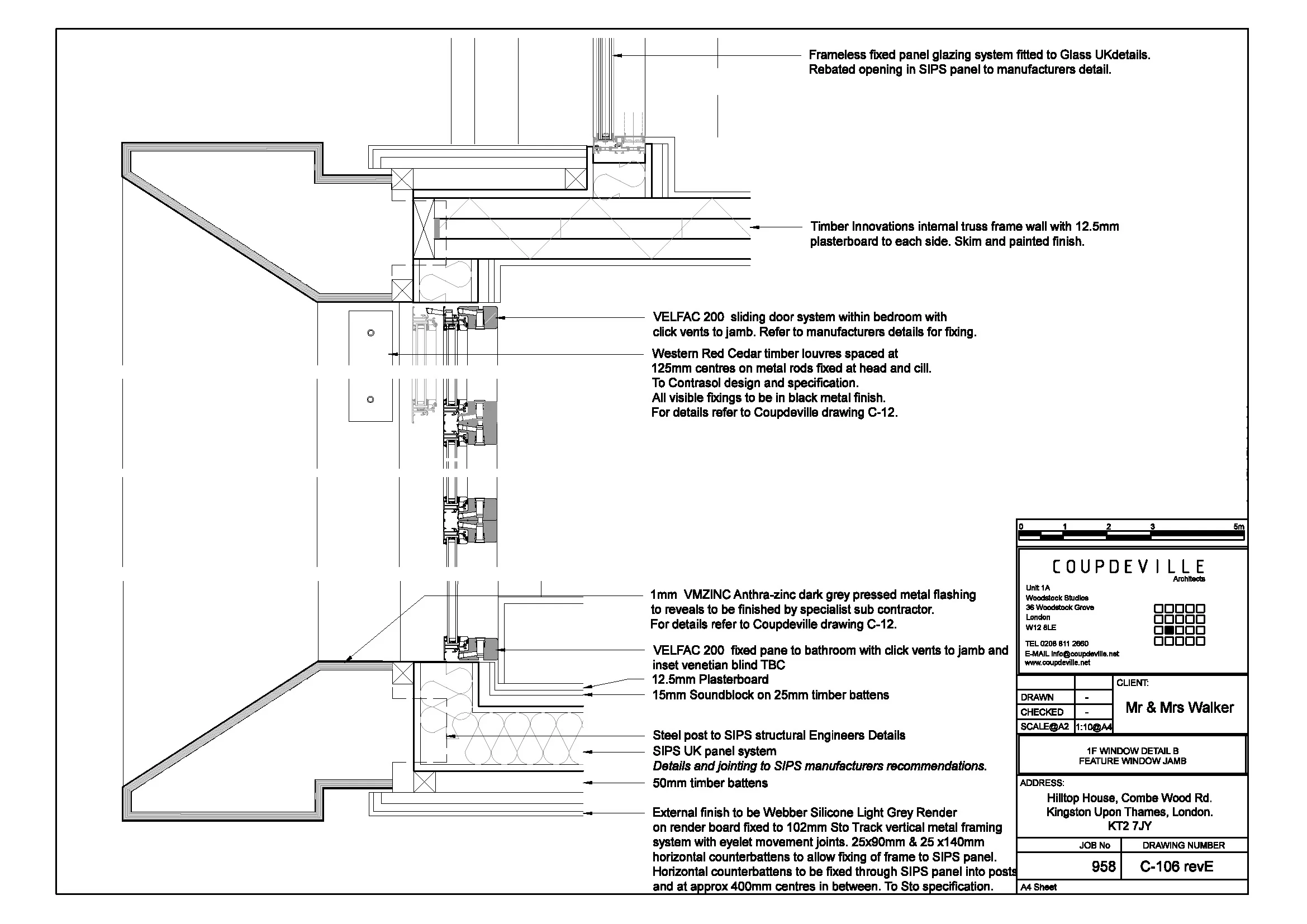

Window Reveal Detail
